ZCZZ DEFENSE

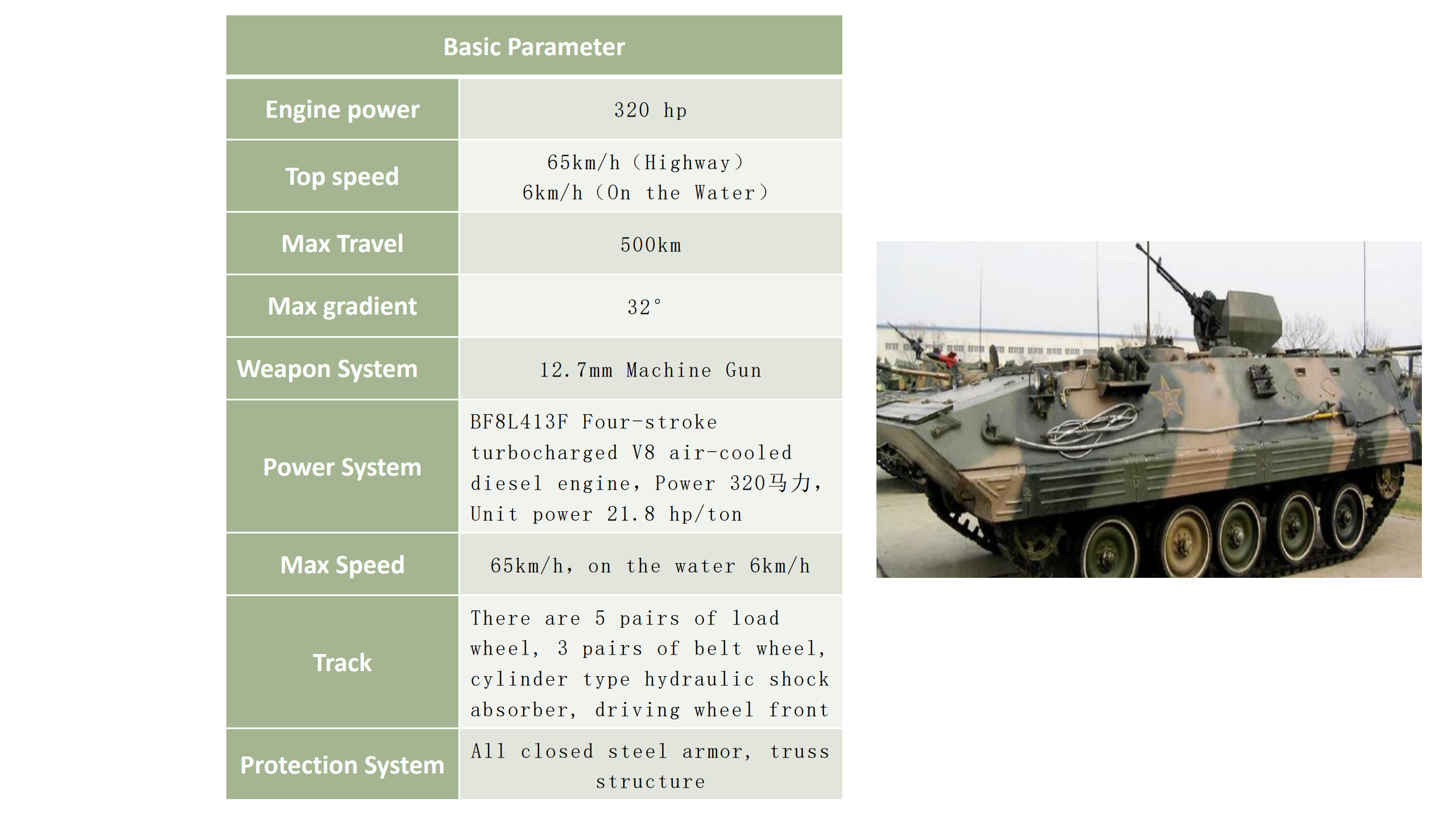

Core Specifications

Parameter	Value
Engine Power	320 HP
Max Speed (Road)	65 km/h
Water Speed	6 km/h
Operational Range	500 km
Max Gradient	32°
Weapon System	12.7mm Machine Gun
Crew Capacity	2 Crew + 8 Troops

Arctic Advantage: Cold-starts reliably at -40°C (Page 38) without preheating systems.

---

Power & Mobility Systems

Drive Train Excellence:

• Engine: BF8L413F Turbocharged V8
  • Air-cooled diesel technology
  • 21.8 HP/ton power-to-weight ratio
• Track System (Page 38):
  • 5 road wheels + 3 return rollers
  • Hydraulic shock absorbers
  • Front sprocket drive
• Critical Mobility Metrics:CapabilityPerformanceTrench Crossing2.0 mSide Slope Stability30°0-32km/h Acceleration8 sec

---

Survivability & Protection

Armor Configuration (Page 38):

• Hull Design: All-welded steel
• Truss Structure: Enhanced mine blast resistance
• NBC Protection: Integrated filtration system

Optional Defense Upgrades:

• ⚡ Explosive Reactive Armor (ERA) tiles
• ☢️ Laser warning receivers
• ❄️ Ice-clearing track grousers

---

Weapon Systems & Loadouts

Standard Armament:

• 12.7mm Heavy Machine Gun
  • 360° manual turret
  • 1,500-round ammunition reserve
  • Effective range: 1,800m

Mission-Specific Configurations:

Role	Weapon Upgrade	Tactical Impact
Anti-Armor	HJ-73D ATGM Launcher	3km tank engagement
Reconnaissance	Remote Sensor Turret	8km target acquisition
Command Post	Retractable Comms Mast	50km encrypted networking

---

Amphibious Capability

Water Operations Protocol (Page 38):

1. Preparation
   • Trim vane deployment: 90 sec
2. Water Entry
   • 25° maximum beach gradient
3. Propulsion
   • Track-driven swimming at 6 km/h
4. Exit Procedure
   • 400mm bank clearance capability

Proven Performance: Maintains 5.8 km/h in 1m waves (Sea State 2).

---

Arctic Deployment Scenario

Mission: Snowfield Rapid Assault

-40°C Cold Start

65km/h Road Sprint

6km/h River Crossing

Tracked Ascent @ 32° Slope

12.7mm Fire Support

Critical Phase Metrics:

• Engine Warmup: 3 min at -40°C
• Fording Preparation: <2 min
• Weapon Readiness: 45 sec from stop

---

Maintenance & Reliability

Field Service Features:

• Component Access
  • Power pack replacement: <45 min
• Track Service Life
  • 5,000 km on paved roads
  • 800 km in abrasive desert
• Extreme Environment ProofingThreatProtectionSand AbrasionHardened track pinsSalt CorrosionZinc-nickel platingMud CloggingSelf-cleaning wheel wells

“In Siberia trials, the Type 89 achieved 98% operational availability at -35°C.” – Arctic Warfare Unit Report

---

Tomorrow’s Preview: ZTZ99A Main Battle Tank (Page 41-42) – 1500hp powerhouse with 125mm smoothbore gun.

---

Article ID: TRK-20240807-T89
Content Source: ZZ Product Manual (EN), Pages 37-38
Word Count: 420 | Read Time: 2.5 min
